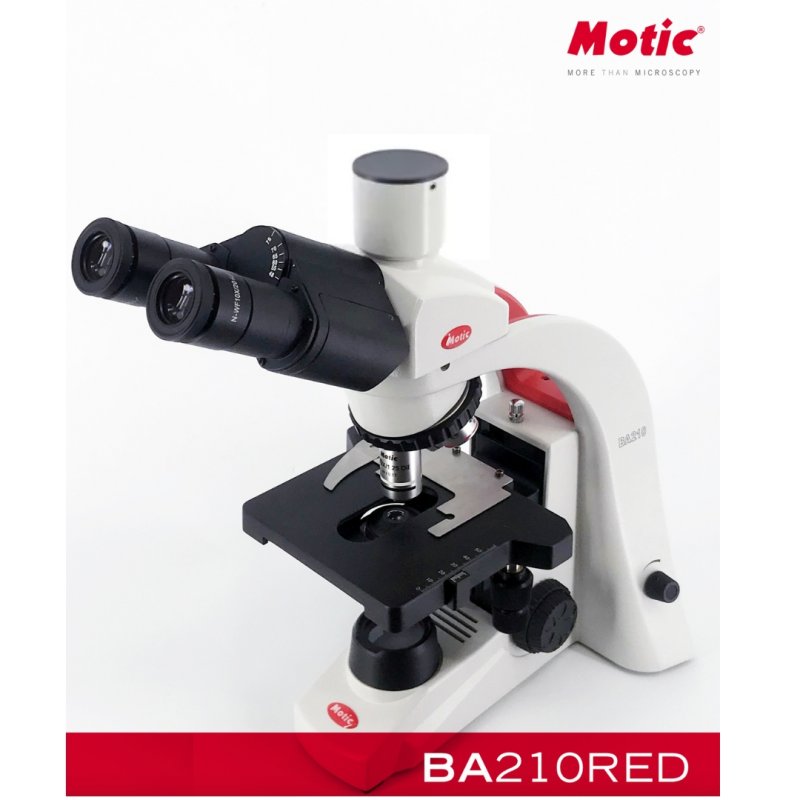

Motic BA210 RED Trinocular Microscope

Motic BA210 RED is a robust instrument that brings professional, repeatable image quality results to all of its intended applications.

Whether using the new powerful 3W LED version, light consuming contrast methods like Polarization, Darkfield, Phase Contrast are easily performed.

Objectives: To improve the overall optical performance the Motic introduces a new generation of Plan Infinity Achromatic Objectives made of high quality optical glass. These new lenses are now multi-layer coated for improved contrast to enhance images even with weak slide stainings. Together with a new tube lens, the result is fully corrected, perfected intermediate image without colour fringes.

Magnification:

Plan SC 4X N.A 0.10 W.Dmm 15.5

Plan SC 10X N.A 0.25 W.Dmm 17.4

Plan SC 40X, Spring  N.A 0.65 W.Dmm 0.6

Plan SC 100X, Spring, Oil N.A 1.25 W.Dmm 0.14

Eyepieces: Standard lockable eyepieces. Ergonomic angle of 30 degrees incorporating an interpupillary distance of 48-75mm. It guarantees fatigue-free viewing for hours. A large field of view (20mm) enables fast and comfortable screening.

Condenser: To ensure perfect height adjustment of the condenser a lock is intergrated. While using phase/darkfield sliders, the user can pre-set the condenser position to prevent potential mis-adjustments.

Stage: Comeswith right hand control stage and a new slide holder which enables consistent sample movement across a 76x40mm range. The model also offeres a hard coated surface, resistant against routine usage abrasion.

Anti-fungus Design: To protect the system from fungus growth in high humidity environments an anti fungus treatment is applied to prolong the life of both microscope and objectives.
