Shiley XLT Flexible Tracheostomy Tubes

(0)
Write review
 Available

Additional Accessories

Product Overview
Delivery and returns
  • Model
  • XLT Series

Description:

Shiley™ flexible tracheostomy tubes XLT are designed for patients who need extra proximal or distal length.

  • Four size options: ISO sizes 5.0, 6.0, 7.0, and 8.0mm
  • Two length configurations: extended distal length and extended proximal length
  • TaperGuard™ cuff and cuffless options

Extended proximal length
Extra length in the proximal portion of the tracheostomy tube can accommodate increased skin-to-tracheal-wall distances in patients with a full or thick neck.

Extended distal length
Extra length in the distal portion of the tracheostomy tube can compensate for longer tracheal anatomies or conditions such as tracheal stenosis (narrowing of the trachea) or malacia (collapsing of the trachea).

Exploring the Shiley™ adult flexible tracheostomy tube XLT

The Shiley™ adult flexible tracheostomy tube XLT features many enhancements compared to the previous version of the product.

  1. Featuring a soft, translucent flange designed to:
  • Reduce points of contact with the patient’s skin
  • Improve airflow to sensitive skin
  • Reduce the risk of skin breakdown
  • Allow clinicians to more readily assess the skin
  1. Designed with a standard 15 mm connector:
  • For connection to respiratory and anesthesia equipment
  1. Color coded by size:
  • A colored triangle printed on the flange and carton label offers easy size identification
  1. Designed with the TaperGuard™ cuff:
  • Thinner, less bulky, low-pressure tapered-shape cuff
  • Reduces insertion force by more than 5%
  • Improves air seal by over 100%
  • Improves ability to titrate ventilator air leaks
  • Increases airflow around the outer cannula when the cuff is deflated by greater than 100%

  1. A newly designed flexible, disposable inner cannula:
  • Conforms to the outer cannula
  • Features a unique snap-loc mechanism secures the cannula in place
  • Designed with a full circumference proximal end compared to the scallop design on the Shiley™ flexible adult tracheostomy tube inner cannula
  1. Featuring radiopaque filament:
  • Visible on X-rays
  • Embedded within and throughout the length of the tube wall
  • 90-degree curve
  1. Featuring a beveled tip:
  • To ease percutaneous insertion

Ordering information

Extended proximal length

Cuffed Cuffless Outer cannula outer diameter (OD) (mm) Outer cannula inner diameter (ID) (mm) Inner cannula inner diameter (ID) (mm) Total length (mm) Proximal length (mm) Radius length (mm) Distal length (mm) Cuff resting diameter (mm) Angle
50FXLTCP 50FXLTUP 9.6 5.0 5.0 90.0 20.0 37.0 33.0 29.0 90°
60FXLTCP 60FXLTUP 11.0 6.0 6.0 95.0 23.0 38.0 34.0 31.0 90°
70FXLTCP 70FXLTUP 12.3 7.0 7.0 100.0 27.0 39.0 34.0 35.0 90°
80FXLTCP 80FXLTUP 13.3 8.0 8.0 105.0 30.0 40.0 35.0 35.0 90°



Extended distal length

Cuffed Cuffless Outer cannula outer diameter (OD) (mm) Outer cannula inner diameter (ID) (mm) Inner cannula inner diameter (ID) (mm) Total length (mm) Proximal length (mm) Radius length (mm) Distal length (mm) Cuff resting diameter (mm) Angle
50FXLTCD 50FXLTUD 9.6 5.0 5.0 90.0 5.0 37.0 48.0 29.0 90°
60FXLTCD 60FXLTUD 11.0 6.0 6.0 95.0 8.0 38.0 49.0 31.0 90°
70FXLTCD 70FXLTUD 12.3 7.0 7.0 100.0 12.0 39.0 49.0 35.0 90°
80FXLTCD 80FXLTUD 13.3 8.0 8.0 105.0 15.0 40.0 50.0 35.0 90°

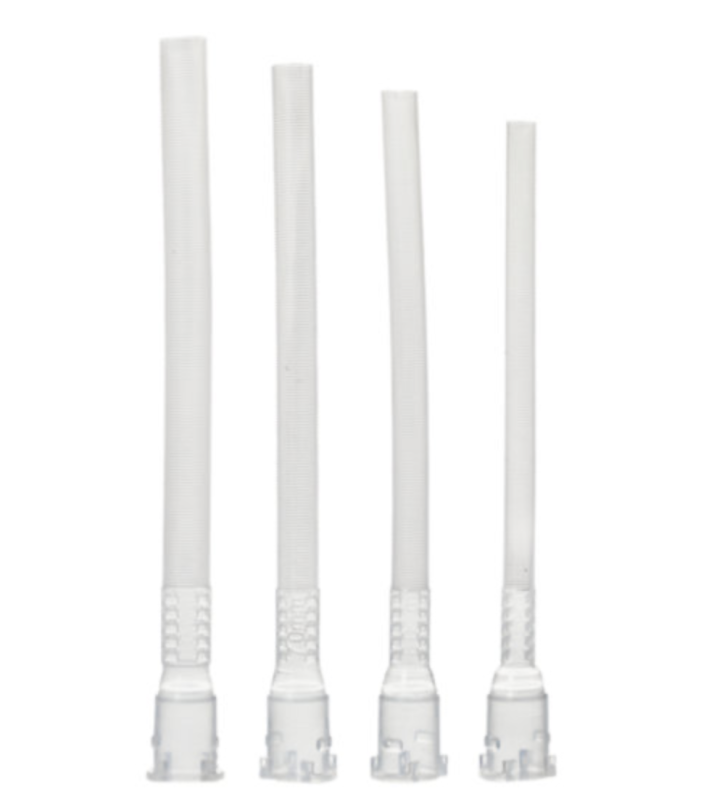

Inner cannula

Inner cannula Inner cannula inner diameter (ID) (mm) Total length (mm) Radius length (mm)
50FXLTIN 5.0 90.0 37.0
60FXLTIN 6.0 95.0 38.0
70FXLTIN 7.0 100.0 39.0
80FXLTIN 8.0 105.0 40.0
